Stainless Steel Worm Drive Clamp Lined (WL)

Name: Stainless Steel Worm Drive Clamp Lined (WL)
Brand: Jolly Clamps

Jolly Perforated Worm Drive Lined clamp is designed to suit Medium duty applications & currently serving a wide variety of Auto & Non-Auto OEMs. Simple design & suitability to accommodate high level of customization makes this clamp more popular in every segment of industrial applications.

Also known as LINED CLAMP

Specification Sheet Enquire Now

Leading Manufacturer & Exporter of Stainless Steel Worm Drive Clamp Lined

Key Features of Stainless Steel Worm Drive Clamp Lined

Jolly stainless steel Lined Worm Drive Clamp is designed as per SAE standard & is suitable for medium duty soft nitrile hose clamping applications.
Jolly Perforated clamp works on principle of Worm Gear action where gearing action between clean punched perforations & thread of Hex Head Screw enables tightening or loosening of clamp on the application.
The Liner prevents direct contact of perforations with hose which prevents hose biting.
With simple three piece construction Jolly SS Worm Drive clamp is available in a wide range of bandwidth options ranging from 9mm to 16mm, which makes this type of clamp more flexible for all types of area of medium duty applications.
Jolly Perforated worm drive clamp with Liner is available in various material grade combination to best suit the application which makes it widely used clamp in all area applications ranging from Domestic to Heavy Industry.

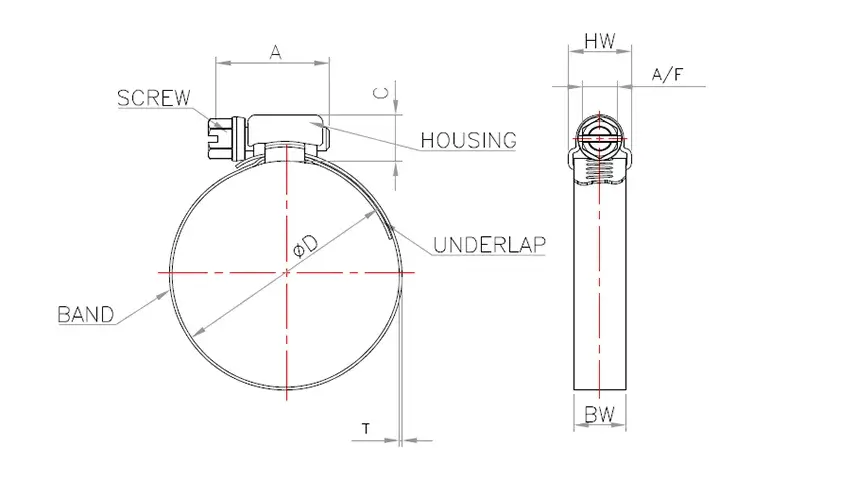

Diagram of Stainless Steel Worm Drive Clamp Lined

Material Options

Jolly Lined Worm Drive Clamp series products are made with material grade of AISI or equivalent global standards to provide high quality & consistency in performance.
Jolly Worm Drive Clamps are available in entirely SS300 grade series as well as available in SS316 grade which is suitable for Marine applications.
Jolly SS Perforated Worm Drive clamps are also available in SS200 grade Series with a combination of screw made of material SS300 series/ SS410 grade/ plated carbon steel with the option of Hexavalent & Trivalent Zinc plating as per Industry & Global Export Standards.

Industries and Applications

Jolly SS Lined Worm Drive Clamps serve in a wide variety of industries as well as in the area of Aftermarket Supplies while meeting industry specified demand & keeping edge over Quality product supplies. Our products commonly used industries and applications such as:

Automotive Applications

Filter Applications

Domestic Applications

Industrial Applications

Automotive & Non-Automotive Aftermarket

What Makes Jolly Clamps Different?

Certified Quality: Holds IATF 16949, ISO 45001, and ISO 14001 certifications, ensuring high standards.
RoHS Compliant: Products meet RoHS standards, demonstrating commitment to environmental responsibility.
100% Clamping Solutions: Acts as a "one-stop" provider for diverse clamping needs.
Extensive Experience: Boasts over 5 decades of manufacturing expertise.
Strong Market Presence: Supplies JOLLY brand clamps to over 80% of OEM and Aftermarket in India.
Global Reach: Exports to North and South America, Europe, and Russia.
Customization Expertise: Specializes in producing customized clamps.
Efficient Delivery: Emphasizes the importance of lowest lead time.

Frequently Asked Questions for Stainless Steel Worm Drive Clamp Lined

What is the Stainless Steel Worm Drive Clamp Lined (WL), and why is it called a Lined Clamp?

The Stainless Steel Worm Drive Clamp Lined (WL), also known as the "Lined Clamp," is a medium-duty worm drive clamp designed specifically for soft nitrile hose applications. The liner prevents the perforations on the band from directly contacting the hose, avoiding hose damage or biting during installation.

How does the Lined Worm Drive Clamp work?

The clamp operates on the worm gear principle, where the cleanly punched perforations on the band interact with the thread of the Hex Head Screw. This allows easy tightening or loosening of the clamp, while the liner protects the hose from damage.

What are the benefits of using a lined clamp for soft hoses?

The lined design ensures that the perforations do not come into direct contact with the hose. This prevents hose biting or tearing, making it ideal for medium-duty applications involving soft nitrile hoses.

What material options are available for the Lined Worm Drive Clamp?

These clamps are manufactured using materials that conform to AISI or equivalent global standards. They are available in: ● SS300 grade series for general applications ● SS316 grade series for marine or highly corrosive environments

In which industries and applications are Lined Worm Drive Clamps commonly used?

These clamps are versatile and widely used in: ● Automotive applications ● Filter systems ● Domestic uses ● Industrial machinery ● Automotive and non-automotive aftermarket supplies

What are the bandwidth options for this clamp?

The Jolly Lined Worm Drive Clamp is available in bandwidth options ranging from 9mm to 16mm, offering flexibility for a wide range of medium-duty applications.

Can the clamp be customized for specific needs?

Yes, the clamp can be customized in terms of size and material grade to suit specific customer requirements, making it adaptable to diverse applications across various industries.
