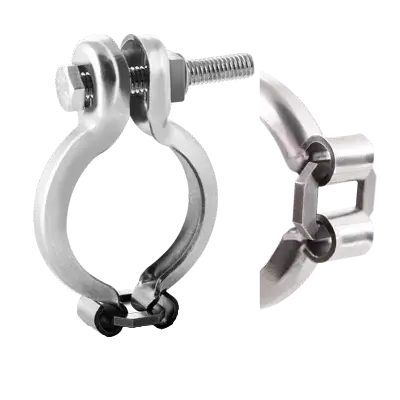

V-clamp with connecting link (VCL)


Jolly V-clamp with Connecting link is a medium duty compact V-band design for easy & quick installation of small size flanged connections. With availability of a wide range of weldless V-profiles, V-clamp is most widely used in applications like EGR tube fittings.


Properties

  1. Jolly V-clamp with connecting link is designed as per customized requirement to connect Metal flanges with gaskets in medium duty applications.

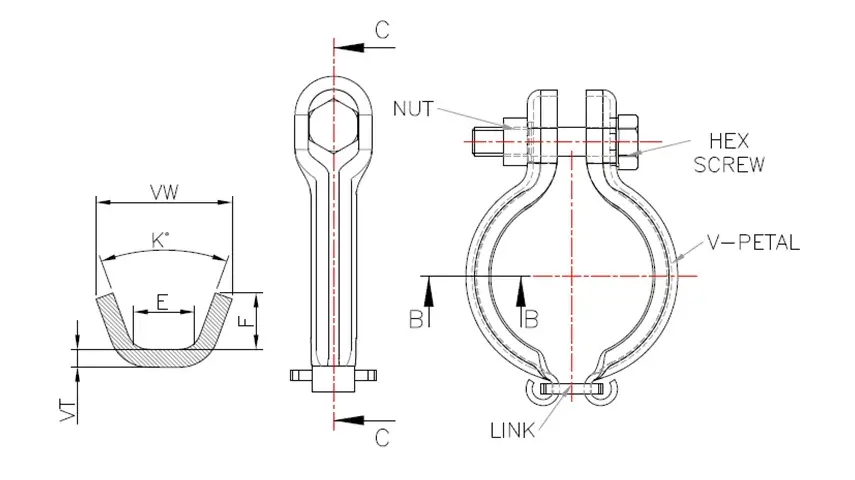

  2. V-clamp is made of weld-free two V-Petal construction connected to each other with the help of connecting link construction which enables quick & easy installation of clamp on assembly.
  3. This makes the clamp most suitable for EGR Tube fitting. Bolt & Nut mechanism is used to fix & tighten the clamp on assembly
  4. Jolly V-clamp is available with several standard sizes frequently used in V-Profile.


Material Options

  • Jolly V-Clamp series products are made with material grade of AISI or equivalent global standards to provide high quality & consistency in performance.
  • V-clamps are available in the entire SS300 grade series for high value high performance applications.
  • Jolly V-Clamps are also available in SS300 grade Series with a combination of plated carbon steel parts as per customer requirement.
  • Zinc plating or Silver Plating is done for all carbon steel parts as per Industry & Global Export Standards.

Industries and Applications

Jolly V-Clamps serve in a wide variety of industries while meeting the required goal to connect medium duty metal flanges in high value & high performance applications. Our products commonly used industries and applications such as:

What Makes Jolly Different?

Jolly Clamps Pvt. is an IATF 16949, ISO 45001 and ISO 14001 certified, RoHS compliant Indian manufacturing company which is one-stop for all your Clamping requirements. We are over 5 decade-old, young company catering JOLLY brand clamping solution to over 80% of OEM and Aftermarket in India and many institutional customers globally. We are a proud Indian clamp manufacturer who specializes in customized clamps and believe in lowest lead time.
