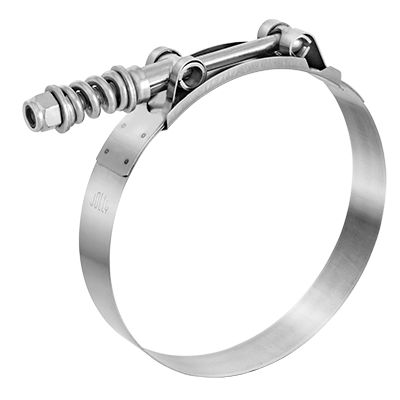

Spring Loaded T-Bolt Clamp (TS)

Name: Spring Loaded T-Bolt Clamp (TS)
Brand: Jolly Clamps

Jolly Spring-loaded T-bolt clamps are designed to suit the applications where clamps need to compensate for expansion & contraction of hose caused by temperature and/or hose cold flow to maintain leak-proof connection.

These clamps typically find their application on silicone hoses on charge air cooling/air to air, after cooling systems, and primary engine coolant systems.

Also known as Light Duty T-Bolt Band Clamps, Spring Loaded T-Bolt & Flex Seal Spring Insert Clamp; Spring Loaded T-Bolt.

Specification Sheet Enquire Now

Leading Manufacturer & Exporter of Spring Loaded T-Bolt Clamp

Key Features of Spring Loaded T-Bolt Clamp

Jolly Spring-loaded T-Bolt Clamp is designed as per SAE standard for High Strength constant Tension leak-proof applications
Constant Tension spring construction compensates for Pressure & Temperature variation in hose line eliminating chances of loosening of clamp's grip on hose & avoid seepage

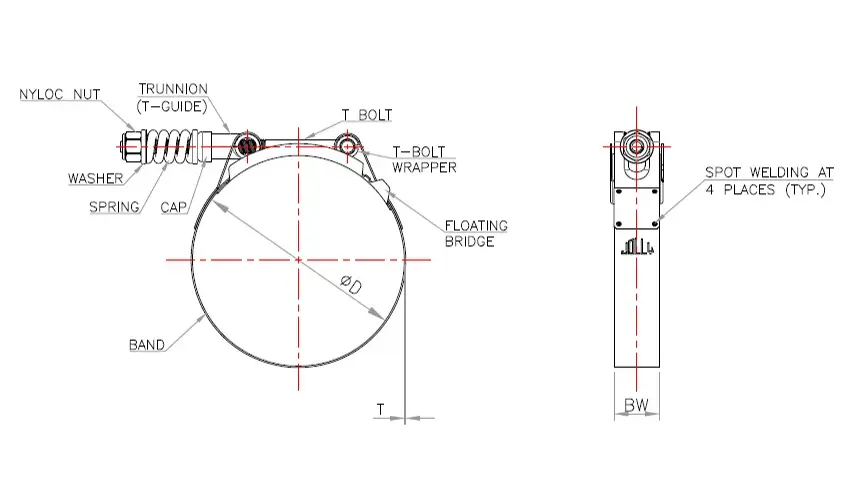

SLTB Clamp is available with floating bridge construction which ensures guided tightening of clamp to prevent hose puckering & subsequent seepage while broad bandwidth ensures uniform clamping force for 360° sealing.
Band edges are rounded to ensure protection of hose from hose biting.
Spring-loaded T-Bolt Series hose clamps are engineered with self-locking nut configuration which prevents loosening of clamp due to heavy vibrations.
The maximum service temperature of self-locking nut is 250° F (121°C).
Jolly Spring-loaded T-Bolt clamp can be made available in various material grade combinations to best suit customer application.

Material Options

Jolly SLTB series products are made with material grade AISI or equivalent global standards to provide high quality & consistency in performance.
Spring loaded TB stainless steel clamps are available in the entire SS300 grade series as well as available in SS316 grade which is suitable for Marine applications.
Jolly constant tension T-Bolt clamps are also available in SS200 grade Series with a combination of plated carbon steel parts as per customer requirement.
Zinc plating is done for all carbon steel parts as per Industry & Global Export Standards.

Industries and Applications

Filter Applications

Marine Applications

Genset Applications

Oil & Gas Applications

Heavy Duty Trucks & Earth Moving Equipments

Automotive Applications

What Makes Jolly Clamps Different?

Certified Quality: Holds IATF 16949, ISO 45001, and ISO 14001 certifications, ensuring high standards.
RoHS Compliant: Products meet RoHS standards, demonstrating commitment to environmental responsibility.
100% Clamping Solutions: Acts as a "one-stop" provider for diverse clamping needs.
Extensive Experience: Boasts over 5 decades of manufacturing expertise.
Strong Market Presence: Supplies JOLLY brand clamps to over 80% of OEM and Aftermarket in India.
Global Reach: Exports to North and South America, Europe, and Russia.
Customization Expertise: Specializes in producing customized clamps.
Efficient Delivery: Emphasizes the importance of lowest lead time.

Frequently Asked Questions for Spring Loaded T-Bolt Clamp

What is a Spring Loaded T-Bolt Clamp, and what is its purpose?

The Spring Loaded T-Bolt Clamp is designed to maintain a leak-proof connection in applications where temperature fluctuations and hose material cold flow can cause expansion and contraction. These clamps are particularly effective in high-strength, constant tension applications.

What are the typical applications of the Spring Loaded T-Bolt Clamp?

These clamps are commonly used in: ● Filter systems ● Marine applications ● Gensets ● Oil & gas equipment ● Heavy-duty trucks and earth-moving equipment ● Automotive systems (e.g., charge air cooling and primary engine coolant systems)

How does the constant tension spring construction benefit this clamp?

The constant tension spring construction adjusts for pressure and temperature variations in the hose line. This eliminates the chances of the clamp loosening its grip, ensuring a secure connection and preventing leakage.

What features ensure the clamp is gentle on hoses?

The clamp is designed with rounded band edges to protect the hose from biting or damage. Additionally, the floating bridge construction ensures guided tightening, preventing puckering and ensuring uniform sealing around the hose.

What is the maximum service temperature of the Spring Loaded T-Bolt Clamp?

The self-locking nut configuration of this clamp can withstand temperatures up to 250°F (121°C), making it suitable for high-temperature applications.

What material options are available for the Spring Loaded T-Bolt Clamp?

The clamp can be manufactured in various material grade combinations, including stainless steel, to suit specific application needs. The flexibility in material choice ensures optimal performance in environments such as marine, industrial, and automotive applications.

What material options are available for the Spring Loaded T-Bolt Clamp?

How does the self-locking nut configuration benefit the clamp in high-vibration environments?

The self-locking nut design prevents the clamp from loosening under heavy vibrations, making it highly reliable in demanding applications like heavy-duty trucks, earth-moving equipment, and oil and gas systems.
