Saddle Type Quick Release V-Band Clamp (QTV)


Saddle type Quick Release V-Band clamp is designed & Developed by Jolly clamps for easy & quick installation of flanges connections. With availability of a wide range of V-profiles, quick release clamp is most widely used in applications where frequent assembly & Disassembly is required for maintenance activities.

Also known as Worm Gear V-Band Coupling, Profile Clamp with Cover Band, Quick Connect V-Insert Clamp.


Specification Sheet Enquire Now

Leading Manufacturer & Exporter of Saddle Type Quick Release V-Band Clamp

Key Features of Saddle Type Quick Release V-Band Clamp

  1. Jolly Quick Release V-Band Clamp is designed as per customized requirement to connect Heavy Duty Metal flanges.
  2. Saddle Type Quick Release V-Band Clamp is suitable to sustain high burst pressure of Exhaust with the help of high Axial clamp force whereas quick release latch enables easy fitment & removal of clamp without removing anti-vibration nut.

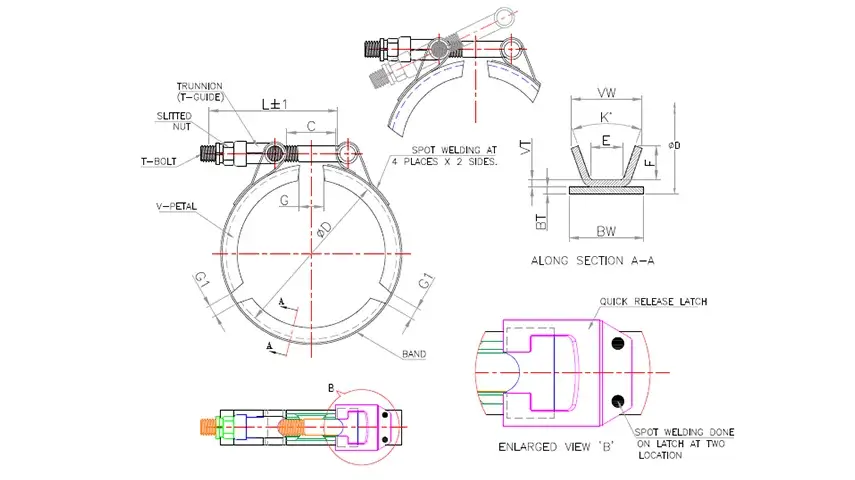

  3. Jolly V-Band clamp is available in two, three or Four V-Petal configurations, this V-Petals are welded on a band with robust welded construction to ensure high strength.
  4. T-Bolt, Trunnion & Nut mechanism is used to fix & tighten the clamp on assembly whereas self-locking nut configuration prevents loosening of clamp due heavy vibrations.
  5. Jolly Quick connection V-Band clamp is available with several standard sizes frequently used in V-Profile.


Material Options

  • Jolly Quick Release V-Band series products are made with material grade of AISI or equivalent global standards to provide high quality & consistency in performance.
  • V-band clamps are available in the entire SS300 grade series for high value high performance applications.
  • Jolly V-band clamps are also available in SS300 grade Series with a combination of SS200 grade steel or plated carbon steel parts as per customer requirement.
  • Zinc plating is done for all carbon steel parts as per Industry & Global Export Standards.

Industries and Applications

Jolly Quick Release V-Band Clamps serve in a wide variety of industries while meeting the required goal to connect heavy duty metal flanges in high value & high performance applications. Our products commonly used industries and applications such as:
use of clamp in automotive applications

Automotive Applications

Use of Spring Loaded T Bolt Clamp in Filter Applications

Filter Applications

Use of Spring Loaded T Bolt Clamp in Marine Applications

Marine Applications

Use of Spring Loaded T Bolt Clamp in Genset Applications

Genset Applications

Heavy Duty Trucks & Earth Moving Equipments

Heavy Duty Trucks & Earth Moving Equipments

Use of Heavy Duty Worm Drive Clamp in Engine Applications

Engine

Use of Spring Loaded T Bolt Clamp in Industrial Applications

Industrial Applications

Exhaust systems

Exhaust systems

Pump

Pump

Emissions

Emissions

Muffler-Assemblies

Muffler

Food & Chemical Processing Equipment

Food & Chemical Processing Equipment

What Makes Jolly Clamps Different?

Jolly Clamps Pvt. is an IATF 16949, ISO 45001 and ISO 14001 certified, RoHS compliant Indian manufacturing company which is one-stop for all your Clamping requirements. We are over 5 decade-old, young company catering JOLLY brand clamping solution to over 80% of OEM and Aftermarket in India and many institutional customers globally. We are a proud Indian clamp manufacturer who specializes in customized clamps and believe in lowest lead time.
As a premier manufacturer and exporter, Jolly Clamps takes pride in delivering top-quality products that have earned acclaim across North and South America (USA), Canada, Mexico, Brazil, Poland, Peru, Germany, and Russia.
