Leading Manufacturer & Exporter of Mini Clip

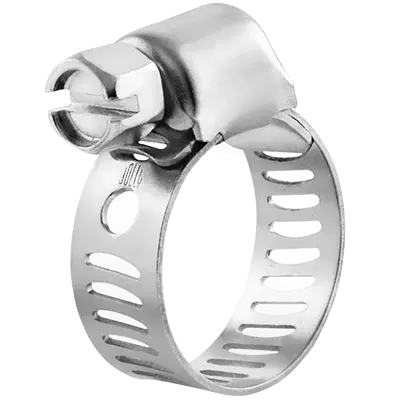

Key Features of Mini Clip
- Jolly Mini Clip is designed as per SAE standard for Low Pressure & Light duty applications.
- Mini Clip or Type ‘M’ clamp as per SAE standard is suitable for small hose diameter applications like Fuel & Air lines & Vacuum Hoses.
- Engineered with one piece housing assembly & bandwidth as low as 8mm (5/16Inch), Mini clip is the most suitable clamp where restricted space is available for installation.
- Jolly Mini Clamp can be used upto Max. application torque of 1.2 Nm.
Material Options
- Jolly Worm Gear Mini Clip series products are made with material grade of AISI or equivalent global standards to provide high quality & consistency in performance.
- Mini Clips are available in entirely SS300 grade series as well as available in SS316 grade which is suitable for Marine applications.
- Jolly Mini Clamps are also available in SS300 grade Series with a combination of plated carbon steel parts as per customer requirement.
- Zinc plating is done for all carbon steel parts as per Industry & Global Export Standards.
Industries and Applications
Jolly Mini Clips serves in a wide variety of industries while meeting industry specified demand & keeping edge over Quality product supplies. Our products commonly used industries and applications such as:
What Makes Jolly Clamps Different?
Certified Quality: Holds IATF 16949, ISO 45001, and ISO 14001 certifications, ensuring high standards.
RoHS Compliant: Products meet RoHS standards, demonstrating commitment to environmental responsibility.
100% Clamping Solutions: Acts as a "one-stop" provider for diverse clamping needs.
Extensive Experience: Boasts over 5 decades of manufacturing expertise.
Strong Market Presence: Supplies JOLLY brand clamps to over 80% of OEM and Aftermarket in India.
Global Reach: Exports to North and South America, Europe, and Russia.
Customization Expertise: Specializes in producing customized clamps.
Efficient Delivery: Emphasizes the importance of lowest lead time.
Frequently Asked Questions for Mini Clip
What is the Mini Clip (WM), and what are its primary applications?
The Mini Clip (WM), also known as the Type ‘M’ clamp, is designed for low-pressure and light-duty applications where restricted installation space is a concern. It is ideal for small hose diameters, such as fuel lines, air lines, vacuum hoses, and applications in domestic, industrial, hardware, and automotive sectors.
What makes the Mini Clip suitable for restricted spaces?
The Mini Clip features a compact design with a bandwidth as low as 8mm (5/16 inch) and a one-piece housing assembly, making it highly effective for installations in tight or confined spaces.
How much torque can the Mini Clip handle?
The Mini Clip can be used up to a maximum application torque of 1.2 Nm, providing sufficient sealing pressure for low-pressure and light-duty applications.
What materials are used to manufacture Mini Clips?
Mini Clips are made using materials that meet AISI or equivalent global standards. They are available in:
● SS300 grade series for general applications
● SS316 grade for marine and high-corrosion environments
● SS300 grade with plated carbon steel parts, with zinc plating for all carbon steel components as per industry and global export standards
What standards do Mini Clips adhere to?
The Mini Clip is designed according to SAE standards, ensuring reliability and performance in low-pressure, light-duty applications.
Which industries commonly use Mini Clips?
Jolly Mini Clips are versatile and widely used in various industries, including:
● Domestic applications
● Industrial machinery
● Hardware
● Water purification systems
● Light-duty automotive applications
● Agriculture and irrigation systems
Why choose SS316 grade material for Mini Clips?
SS316 grade material is suitable for applications in marine or high-corrosion environments due to its excellent resistance to rust and harsh conditions, ensuring long-lasting performance.Quick Release SS Worm Drive Clamp (WQ)
